How to Replace Organotin with Ca-Zn Stabilizer in PVC Processing?
Read：18
Source:
Replacing an organotin stabilizer with a calcium-zinc stabilizer is not simply a matter of using the same dosage of a different product.
The change can affect PVC fusion, heat stability, lubrication, melt viscosity, color retention, plate-out, surface quality and production output. A successful organotin replacement project therefore requires a controlled transition from the existing formulation to a validated Ca-Zn stabilizer system.
In some PVC applications, a specialized calcium zinc stabilizer can fully replace organotin. In more demanding formulations, partial organotin reduction may be a safer route. The correct choice depends on the finished product, processing method, thermal history and acceptable performance limits.
This guide explains how to evaluate, test and implement a Ca-Zn stabilizer in PVC processing without creating unnecessary production risks.
Can Ca-Zn Stabilizer Directly Replace Organotin?
A Ca-Zn stabilizer should not automatically be used as a one-to-one replacement for organotin.
The two stabilizer systems differ in:
① Active stabilizing components
② Initial and long-term heat stability
③ Lubricating effect
④ Compatibility with PVC and other additives
⑤ Recommended dosage
⑥ Response to heat and shear
⑦ Sensitivity to residence time
⑧ Plate-out behavior
Organotin stabilizers are commonly used as a performance benchmark in rigid and transparent PVC because they generally provide strong initial color, reliable clarity and a relatively wide processing window.
A calcium-zinc stabilizer is usually a more complex package containing calcium and zinc compounds together with co-stabilizers, antioxidants, polyols, phosphites, lubricants or other functional components. Its performance depends on the balance of the complete package rather than the calcium and zinc content alone.
For this reason, replacement should be based on comparable processing and finished-product performance—not equal stabilizer weight.
Choose Full Replacement or Partial Organotin Reduction
Before adjusting the formulation, determine what the project is expected to achieve.
Full Organotin Replacement
A complete Ca-Zn replacement may be suitable when:
① The customer requires an organotin-free formulation
② A specialized Ca-Zn grade is available for the application
③ The target heat stability can be achieved
④ Fusion and processing conditions can be adjusted
⑤ Optical and surface-quality requirements are met
⑥ The production line has enough processing margin
⑦ The final formulation passes the required product testing
Full replacement is generally easier in applications where extreme optical clarity and a very wide processing window are not the primary requirements.
Partial Organotin Replacement
Partial replacement may be more practical when:
① The manufacturer wants to reduce organotin gradually
② The existing organotin formulation is already stable
③ Transparency and initial color tolerances are narrow
④ A major process change would create production risk
⑤ The production line has a long thermal history
⑥ The customer wants lower odor or lower organotin use without complete reformulation
A partial-replacement system combines a compatible Ca-Zn package with part of the existing organotin dosage. The actual ratio must be validated for the specific products and production conditions.
Continue Using Organotin
Organotin may remain appropriate when:
① Optical tolerances are extremely strict
② The PVC experiences severe heat or long residence time
③ The existing product approval is tied to a specific formulation
④ The line cannot accommodate changes in fusion or lubrication
⑤ No Ca-Zn system has passed extended production testing
The objective should be to select the lowest-risk technical solution, not to force a full replacement in every application.
Step 1: Record the Existing Organotin Formulation
A replacement trial should begin with a complete baseline of the current formulation and production conditions.
Baseline Item | Information to Record |
PVC resin | Supplier, grade and K-value |
Organotin stabilizer | Type, product grade and dosage |
Impact modifier | Type and phr |
Processing aid | Type and phr |
Internal lubricant | Type and phr |
External lubricant | Type and phr |
Filler | Type, particle size and dosage |
Recycled material | Percentage and processing history |
Processing method | Extrusion, calendering or injection |
Temperature | Individual processing zones |
Screw speed | Normal operating range |
Head pressure | Normal and maximum range |
Output | kg/h |
Initial color | L*, a*, b* or yellowness index |
Cleaning interval | Hours, shifts or production quantity |
Current defects | Yellowing, haze, plate-out or black specks |
The baseline should also include samples made with the current organotin formulation. These samples will serve as the control for color, heat stability, transparency, surface appearance and mechanical properties.
Without a documented control, it is difficult to determine whether the new Ca-Zn stabilizer is genuinely better, equivalent or unacceptable.
Step 2: Select a Ca-Zn Stabilizer for the Application
A general-purpose calcium zinc stabilizer should not be expected to work equally well in every PVC product.
The stabilizer should be selected according to:
① Rigid or flexible PVC
② Transparent or opaque product
③ Extrusion, injection or calendering
④ Product thickness
⑤ Filler level
⑥ Impact-modifier system
⑦ Processing temperature
⑧ Residence time
⑨ Required surface gloss
⑩ Target market and product documentation
Clear rigid PVC generally requires a specialized ultra-clear Ca-Zn stabilizer with good compatibility, dispersion and initial-color control.
Pipe and profile formulations may place greater emphasis on long-term heat stability, output and surface finish. Injection-molded fittings may require good flow, release and resistance to extended residence time.
The supplier should understand the complete application rather than recommending a stabilizer based only on the words “rigid PVC” or “transparent PVC.”
Step 3: Design a Controlled Laboratory Trial
The first laboratory trial should change as few variables as possible.
Use the current organotin formula as the control and prepare several structured trial groups.
Trial | Stabilizer Direction | Main Purpose |
Control | Existing organotin formula | Establish current performance |
Trial A | Low-level Ca-Zn partial replacement | Evaluate a low-risk transition |
Trial B | Higher partial replacement | Identify the acceptable replacement range |
Trial C | Full Ca-Zn stabilizer system | Evaluate complete replacement |
Trial D | Selected Ca-Zn system with lubricant adjustment | Correct fusion or surface problems |
Trial E | Selected formula under longer heat exposure | Evaluate processing margin |
Do not change the stabilizer, resin, lubricant, processing aid, filler and temperature at the same time. When several variables change together, the cause of a problem becomes difficult to identify.
Samples should be prepared using the same:
① Mixing procedure
② Processing temperature
③ Processing time
④ Sample thickness
⑤ Cooling conditions
⑥ Testing method
For transparent PVC, the samples should also have comparable surface texture because surface differences can affect haze and visual clarity.
Step 4: Rebalance Internal and External Lubrication
Lubrication is one of the most important parts of organotin replacement.
Some Ca-Zn one-pack stabilizers already contain internal or external lubricating components. Adding them to an existing formulation without reviewing the original lubricant package can result in delayed fusion, poor gloss or plate-out.
Signs of Excessive External Lubrication
① Delayed fusion
② Lower fusion torque
③ Poor surface gloss
④ Insufficient gelation
⑤ Lower mechanical performance
⑥ Unstable output
Signs of Insufficient External Lubrication
① Excessive friction
② Higher head pressure
③ Material sticking to metal
④ Premature degradation
⑤ Die build-up
⑥ Unstable release
Signs of Excessive Internal Lubrication
① Low melt strength
② Reduced mechanical performance
③ Unstable forming
④ Excessively soft melt behavior
Lubricants should be adjusted gradually. Small changes are easier to evaluate than a complete redesign of the lubricant package.
The adjustment should be guided by torque, fusion time, melt temperature, head pressure, surface gloss and metal release—not only by the appearance of one laboratory sheet.
Step 5: Test Heat Stability, Fusion and Color Retention
Good initial color does not guarantee sufficient production stability.
A Ca-Zn stabilizer may produce an acceptable sample at the beginning of processing but show rapid yellowing or darkening after longer heat exposure.
The evaluation should include:
Static Heat Aging
Static oven aging shows how the color changes at fixed temperature intervals. It is useful for comparing initial color and progressive thermal degradation.
Dynamic Heat Stability
A torque rheometer, two-roll mill or production extruder introduces both heat and shear. This better represents actual PVC processing.
Record:
① Fusion time
② Peak torque
③ Equilibrium torque
④ Melt temperature
⑤ Time to decomposition
⑥ Color development
Color Measurement
Visual observation should be supported by measurable color data, such as:
① L* value
② a* value
③ b* value
④ Yellowness index
⑤ ΔE
Particular attention should be paid to sudden late-stage darkening. Zinc compounds can react with released HCl to form zinc chloride, which may accelerate further PVC degradation if the Ca-Zn system and co-stabilizers are not properly balanced.
Step 6: Evaluate Plate-Out and Surface Quality
Plate-out can occur when poorly compatible or low-molecular-weight components migrate from the PVC compound and deposit on rolls, screws, dies or other hot metal surfaces.
After changing to a Ca-Zn stabilizer, monitor:
① Die build-up
② Roll contamination
③ Surface gloss
④ Die lines
⑤ Black specks
⑥ Haze
⑦ Color uniformity
⑧ Cleaning frequency
⑨ Restart quality
Plate-out is not always caused by the stabilizer alone. It may also be related to:
① Excessive lubricant
② Low-quality polyethylene wax
③ Low-molecular-weight metal soaps
④ Poor raw-material compatibility
⑤ Incorrect processing temperature
⑥ Incomplete fusion
A short laboratory test may not reveal deposit formation. Plate-out must also be checked during an extended production run.
Step 7: Run an Extended Production-Line Trial
A successful laboratory result should be followed by a controlled line trial.
Begin at a low-risk production condition and gradually return to normal speed. Record the same parameters used for the organotin control.
The trial should evaluate:
1．Start-up color and scrap
2．Fusion and machine load
3．Head pressure stability
4．Normal production output
5．Color drift during continuous production
6．Die or roll deposits
7．Product gloss and surface quality
8．Stop-and-restart behavior
9．Cleaning interval
10．Finished-product physical properties
The line should run long enough to represent the actual thermal history of the product. A short trial that ends before deposits or color drift appear cannot confirm production suitability.
Common Problems After Switching to Ca-Zn
Processing Problem | Possible Cause | First Adjustment Direction |
Early yellowing | Insufficient initial stabilization or excessive temperature | Review stabilizer grade, dosage and actual melt temperature |
Sudden darkening | Zinc burning or excessive residence time | Improve long-term stabilization and reduce retained material |
Delayed fusion | Excessive external lubrication | Review wax and external lubricant level |
Premature fusion | Insufficient external lubrication or excessive friction | Check torque, temperature and metal release |
Plate-out | Poor compatibility or low-molecular components | Check stabilizer, wax and metal-soap quality |
Lower surface gloss | Incomplete fusion or deposits | Review fusion time and die cleanliness |
Higher haze | Poor dispersion, incompatibility or migration | Check additive compatibility and sample thickness |
Black specks after restart | Degraded material retained in the equipment | Review heat stability and restart procedure |
Lower output | Changed melt viscosity or fusion behavior | Compare torque, head pressure and screw speed |
More production scrap | Narrower processing window | Review temperature sensitivity and line conditions |
Adjust one factor at a time whenever possible. This makes the corrective action easier to validate.
Calculate the Total Cost of Replacement
The cost comparison should not be based only on stabilizer price per kilogram.
The basic material cost is:
Stabilizer cost per tonne of compound = stabilizer price × actual dosage
The complete cost analysis should also include:
① Additional co-stabilizers
② Lubricant changes
③ Production output
④ Start-up waste
⑤ Rejected products
⑥ Cleaning time
⑦ Production downtime
⑧ Energy use
⑨ Product requalification
⑩ Customer testing
A lower-cost stabilizer may not reduce total production cost if it requires more additives, creates more waste or reduces line output.
The correct comparison is the cost per tonne of qualified finished PVC product.

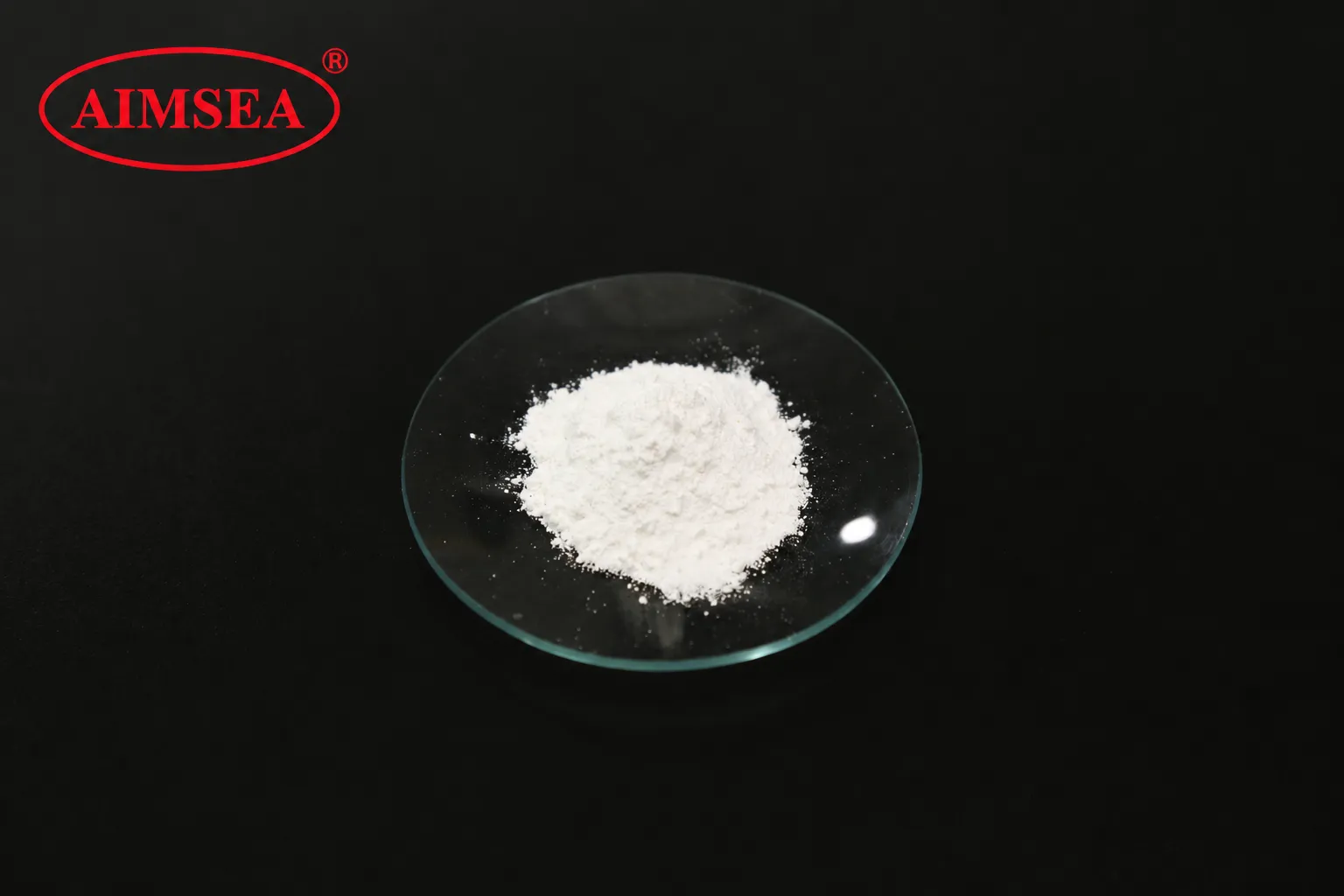

AIMSEA Ca-Zn Replacement Routes
AIMSEA provides both full and partial organotin replacement routes for selected PVC applications.
CZ-188 for Full Ca-Zn Replacement
In an AIMSEA laboratory comparison for clear rigid PVC, the organotin control contained 1.2 phr organotin stabilizer, while the Ca-Zn formula used 1.5 phr CZ-188.
Under the specified formulation and test conditions:
Stabilizer System | Light Transmittance | Haze |
Organotin control | 86.7% | 2.7% |
AIMSEA CZ-188 | 86.3% | 2.8% |
The test indicates that a specialized ultra-clear Ca-Zn stabilizer can approach the optical performance of organotin in a suitable formulation.
These results apply only to the tested formulation and conditions. Resin grade, sample thickness, lubricant system and processing history must be considered in every new project.
CZ-186 for Partial Organotin Replacement
AIMSEA CZ-186 is designed as an organotin companion for selected transparent rigid PVC formulations.
In an internal transparent-sheet comparison, part of the organotin dosage was replaced with CZ-186 while the other formulation components remained consistent. The partially replaced system achieved optical and physical properties comparable to the full-organotin control under the tested conditions.
The tested blending ratio should not be treated as a universal recommendation. Compatibility and dosage must be confirmed for the specific organotin grade, PVC formulation and processing line.
Final Approval Checklist
A Ca-Zn stabilizer should only be approved for regular production when:
① Initial color meets the product specification
② Static heat stability meets the required time
③ Dynamic stability covers the actual production cycle
④ Fusion and torque remain within the acceptable range
⑤ Head pressure is stable
⑥ Production output is commercially acceptable
⑦ Plate-out does not increase
⑧ Surface gloss and appearance meet the standard
⑨ Mechanical properties pass testing
⑩ Restart behavior is acceptable
⑪ Total cost meets the project objective
⑫ Product and market-specific documentation has been verified
Frequently Asked Questions
Can Ca-Zn stabilizer replace organotin at the same dosage?
Not necessarily. The two products may have different active components, lubricant content and recommended dosages. Replacement should be based on performance testing rather than equal weight.
Why does PVC turn yellow after switching to Ca-Zn?
Possible causes include insufficient initial stabilization, excessive processing temperature, longer residence time, lubricant imbalance or an unsuitable Ca-Zn stabilizer grade.
Does Ca-Zn stabilizer require a different lubricant system?
It often does. Some Ca-Zn products contain integrated lubricants, while others require separate internal and external lubricant adjustment.
Can Ca-Zn and organotin stabilizers be used together?
Yes, a compatible Ca-Zn system may be used for partial organotin reduction. The ratio must be validated using the actual stabilizer grades and PVC formulation.
Which PVC products are most difficult to convert?
Clear rigid PVC, high-gloss products, long-residence-time injection parts and products with narrow initial-color tolerances generally require more extensive testing.
Is a Ca-Zn stabilizer automatically suitable for food-contact or medical PVC?
No. Suitability must be confirmed for the exact stabilizer grade, dosage, complete PVC formulation, finished product and target market.
Conclusion
Replacing organotin with a Ca-Zn stabilizer is a formulation transition rather than a simple raw-material substitution.
The process should begin with a documented organotin baseline, followed by application-specific stabilizer selection, controlled laboratory trials, gradual lubrication adjustment and extended line validation.
A full Ca-Zn replacement may be practical when heat stability, processing and finished-product requirements can all be achieved. Partial replacement may provide a lower-risk route for transparent PVC or established production lines that cannot tolerate major changes.
The final decision should be based on measurable color, heat stability, fusion, plate-out, output, product quality and total processing cost.
Submit your current organotin formulation, PVC application, processing conditions and performance targets to AIMSEA for a Ca-Zn stabilizer replacement evaluation.
